Product Description
| Download Documents | |
| SDS | USER MANUAL will be supplied to customer |

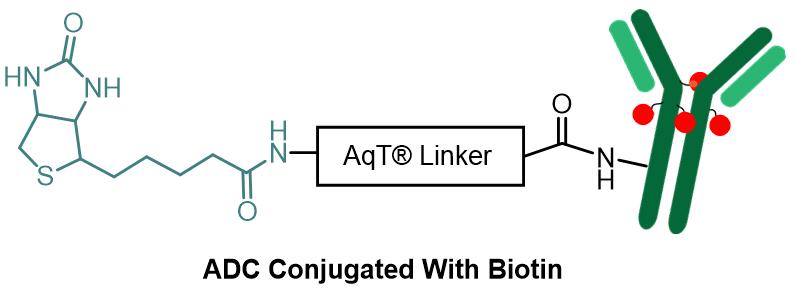

AqT® Biotin ADC Labeling kit is a proprietary biotinylation kit developed at CellMosaic® for obtaining biotin labeled ADC.
AqT® Biotin ADC Labeling Kit (Surface Amines) enables biotinylation of antibody–drug conjugates (ADCs) for detection, which can be challenging with conventional linker chemistries due to aggregation. The kit is designed for dual labeling, producing ADCs with an average of 3-5 drugs and 2–4 biotins per antibody. It uses CellMosaic’s super-hydrophilic, water-soluble, charge-neutral AqT® linker to minimize additional aggregation during biotinylation and generates stable dual labeled conjugates while helping preserve ADC function.
For a detailed description of the AqT® technologies, please see our technology section.
This kit is not a standalone kit and must be used with CellMosaic ADC kit workflows; it is intended for use directly with ADC intermediates generated in those workflows (see Table 1 for compatible kits).
The CM86145 kit is designed to label selected IgG ADCs prepared using CellMosaic's ADC kits with AqT® bitcoin via surface amines on the antibody. The kit includes AqT® biotin acid, which is activated within 15 minutes and then coupled directly to the ADC in one step within 1 hour. The labeled product is subsequently purified to remove any unreacted AqT® biotin acid
|
Catalog Number |
Number of Reactions in Kit |
Antibody Amount per Reaction |
|
CM86145.01x1 |
1 |
100 μg (0.667 nmol for IgG) |
|
CM86145.01x3 |
3 |
|
|
CM86145x1 |
1 |
1-3 mg (6.67-20 nmol for IgG) |
|
CM86145x3 |
3 |
If you have any other customization needs, please provide the details above.
Compatible CellMosaic ADC Kits for use with CM86264
| Part # (Number of Reactions) | ADC Kit Name (Scale of the Reaction) |
| CM11409 (x1, x3) | Antibody MMAE Conjugation Kit (With VC-PAB Linker) (1-3 mg) |
| CM11416 (x1, x3) | F(ab’)2 MMAE Conjugation Kit (with VC-PAB Linker) (1-3 mg) |
| CM11422 (x1, x3) | Antibody Mc-MMAF Conjugation Kit (1-3 mg) |
| CM11425 (x1, x3) | Antibody MMAF Conjugation Kit (with VC-PAB Linker) (1-3 mg) |
| CM11429 (x1, x3) | ADC Control Kit with VC-PAB Linker (1-3 mg) |
| CM11431 (x1, x3) | Antibody Deruxtecan Conjugation Kit (1-3 mg) |
Key Features
- Advanced AqT® linker technology: Utilizes CellMosaic’s proprietary, super-hydrophilic, water-soluble, charge-neutral AqT® linker to minimize fluorophore stacking and ADC aggregation.
- High biotin loading with preserved ADC properties: Typical degree of labeling (DOL) of 2–4 dyes per ADC while maintaining ADC activity, with minimum aggregation.
- All-inclusive kit with validated analytical method: Provides sterilized buffers and tubes, columns, and filters for biotinylation. Also includes all buffers and methods needed for concentration measurement and loading determination.
- Fast, user-friendly workflow plus optional support: One-step labeling and purification in ~2 hours (≤1 hour hands-on), with optional post-conjugation services at CellMosaic® for analytical characterization and DOL determination.

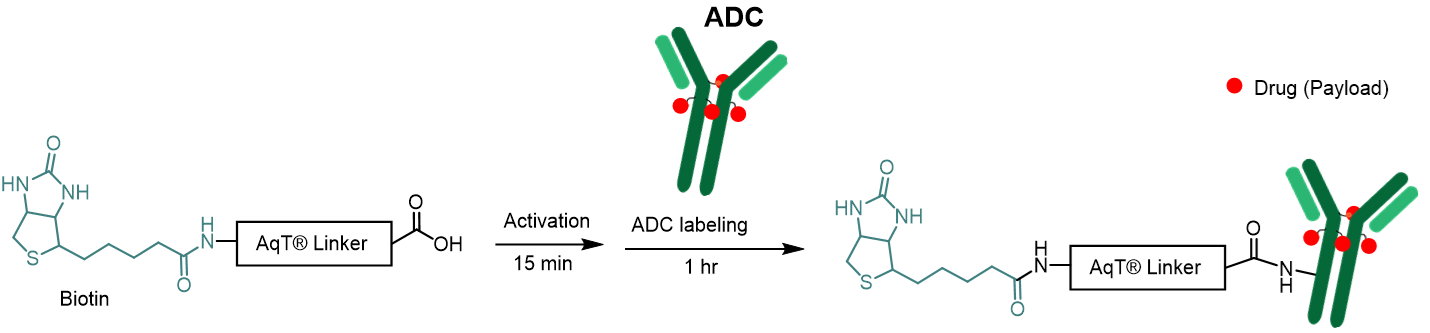

Labeling Chemistry
Protocol

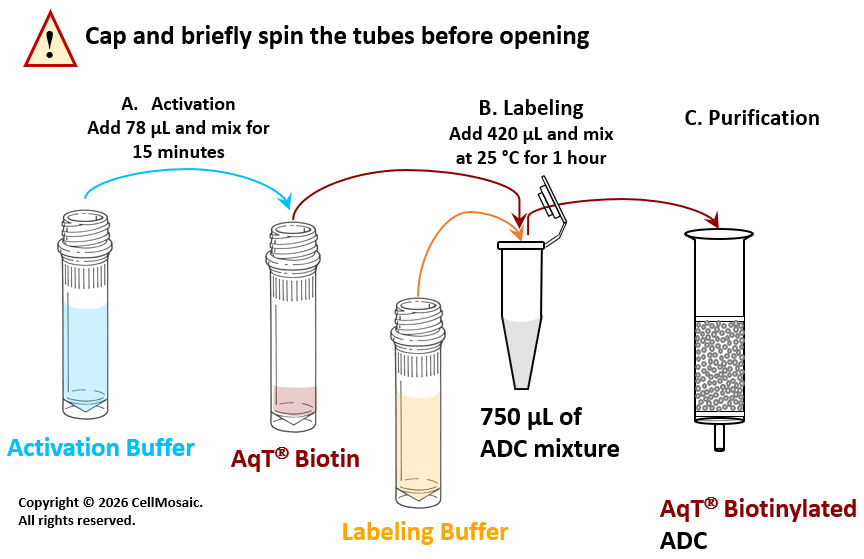

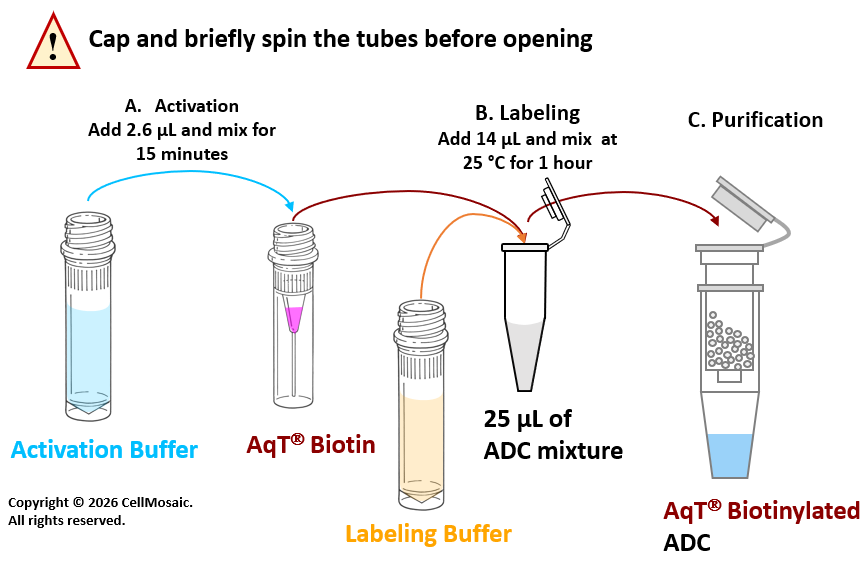

Schematic workflow diagram for preparing AqT® biotin labeled ADC within 2 hours, starting with 3 mg of ADC. (Reagent volume will vary if the amount of ADC is less than 3 mg).
Other Details
