Product Description
| Download Documents | |
| SDS | USER MANUAL CM86248 (1-3 mg scale) |
| USER MANUAL CM86248.01 (0.1 mg scale) | |
AqT® Fluor 750 Antibody Labeling kit is a proprietary fluorescent labeling kit developed at CellMosaic® for obtaining high quality and high loading of fluorescent labeled antibody with minimal or no aggregation.
Commercial fluorescent dyes are often highly hydrophobic, so dye-labeled antibodies can aggregate and exhibit fluorescence quenching at high dye loading due to fluorophore stacking, reducing signal. The AqT® Fluor 750 Antibody Labeling Kit (Surface Amines) uses CellMosaic’s super-hydrophilic, water-soluble, charge-neutral AqT® linker to improve dye-labeled antibody performance by increasing solubility, reducing aggregation and nonspecific binding, and minimizing quenching; it employs a core dye with Ex/Em 750/780 nm, and the AqT® spacer helps maintain antibody function and produce brighter, more stable conjugates with improved signal intensity.
For a detailed description of the AqT® technologies, please see our technology section.
The CM86248 kit is designed to label any antibody with AqT® Fluor 750 dye via surface amines on the antibody. The user supplies the antibody. The kit includes AqT® Fluor 750 acid, which is activated within 15 minutes and then coupled directly to the antibody in one step. The labeled product is subsequently purified to remove any unreacted AqT® Fluor 750 acid
The kit is available in multiple configurations for labeling antibodies ranging from 0.1 to 3 mg. Each configuration supports labeling of either one (×1) or three (×3) antibody samples. Please refer individual configuration to download the user manual.
|
Catalog Number |
Number of Reactions in Kit |
Antibody Amount per Reaction |
|
CM86248.01x1 |
1 |
100 μg (0.667 nmol) |
|
CM86248.01x3 |
3 |
|
|
CM86248.1x1 |
1 |
0.4-1 mg (2.67-6.67 nmol) |
|
CM86248.1x3 |
3 |
|
|
CM86248x1 |
1 |
1-3 mg (6.67-20 nmol) |
|
CM86248x3 |
3 |
If you have any other customization needs, please provide the details above.
Requirement for Antibody
- MW: ≥ 100 KDa (if MW is lower, please use an alternative kit)
- Preferably >90% pure by gel electrophoresis
- Total amount: 0.1 mg or 0.4-3 mg of protein content as measured by UV.
Key Features
- Optimized for near-infrared imaging: Features a Fluor 750 core dye (Ex 750 nm / Em 800 nm), ideal for IR-range applications.
- Advanced AqT® linker technology: Utilizes CellMosaic’s proprietary, super-hydrophilic, water-soluble, charge-neutral AqT® linker to minimize fluorophore stacking and antibody aggregation.
- High dye loading with preserved antibody function: Typical degree of labeling (DOL) of 3–5 dyes per antibody while maintaining antibody activity. No increase in apparent MW (hydrodynamic volume) or aggregation.
- All-inclusive kit with validated analytical method: Provides sterilized buffers and tubes, columns, and filters for fluorescent labeling. Also includes all buffers and methods needed for concentration measurement and loading determination.
- Fast, user-friendly workflow plus optional support: One-step labeling and purification in ~2 hours (≤1 hour hands-on), with optional post-conjugation services at CellMosaic® for analytical characterization and DOL determination.

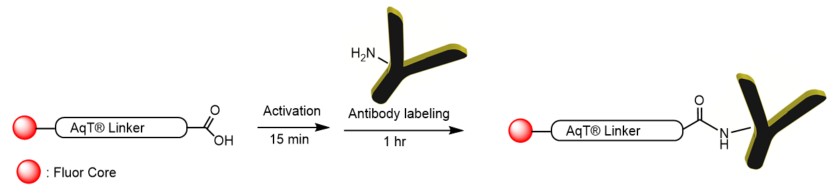

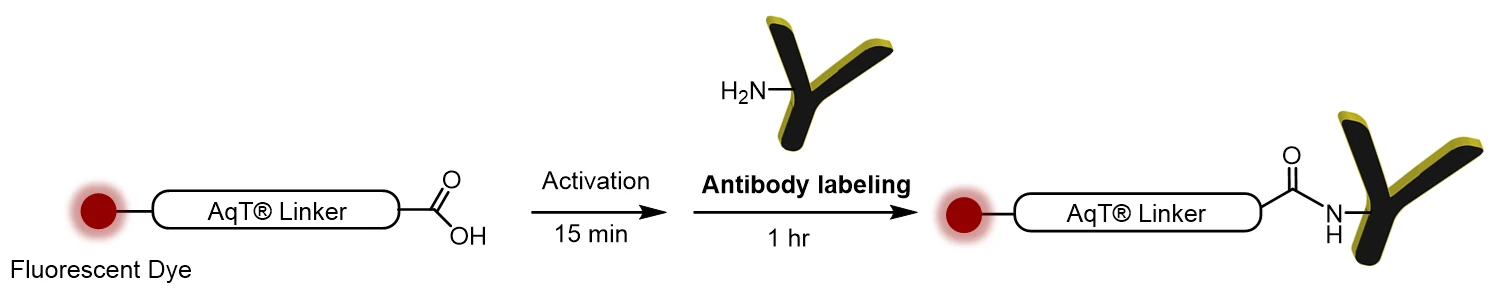

Labeling Chemistry
Protocol

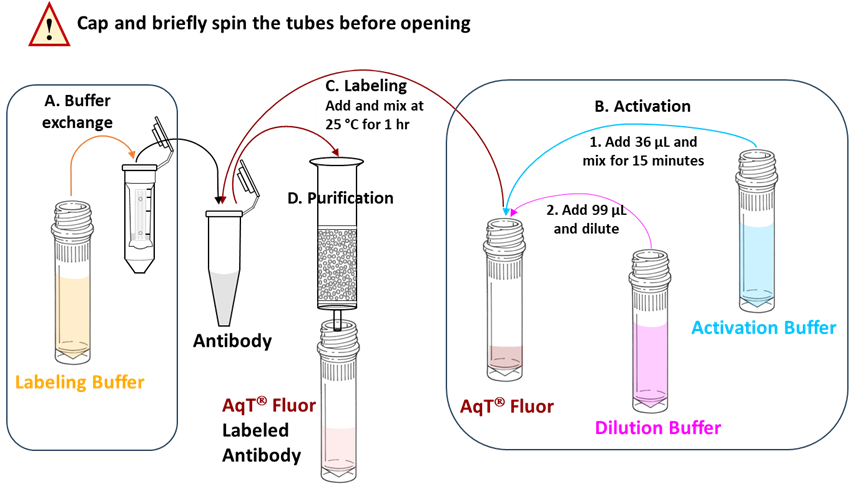

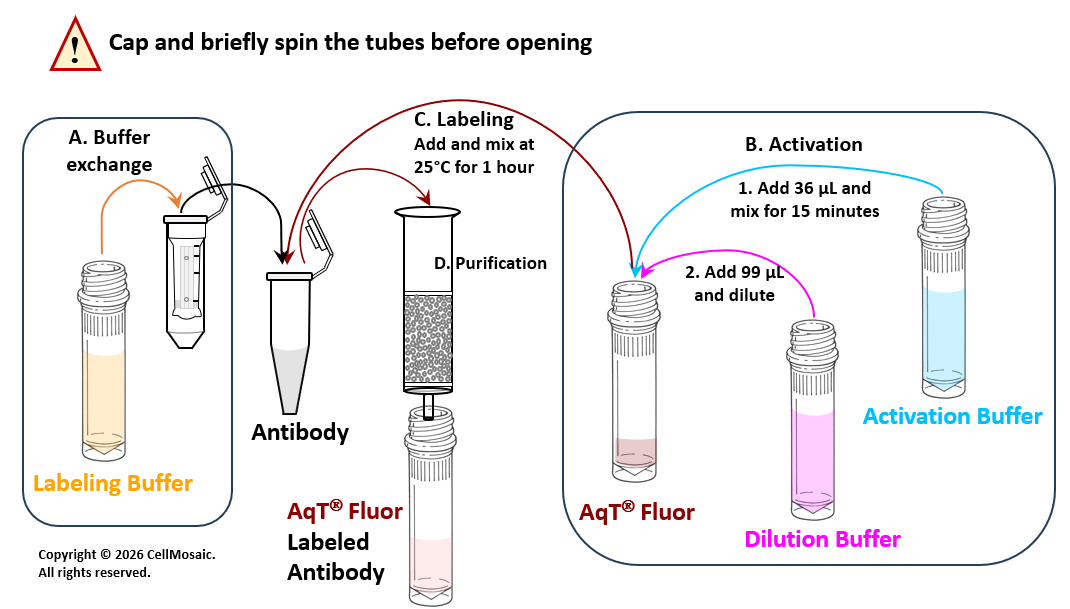

Schematic workflow diagram for preparing AqT® Fluor 750 labeled antibody within 2 hours, starting with 3 mg of IgG. (Reagent volume will vary if the amount of IgG is less than 3 mg).
Other Details
